Service Repair Manual |
| Year | 1997-2002 |
|
| Engine code | 7A-FE |
|
| Engine size | 1762ccm |
|
| Power | 81kw |
|
| Firing order | 1-3-4-2 |
|
| Spark plug | DENSO K20R-U
NGK BKR6EYA |
|
| Electrode gap | 0.8mm |
|
| Radiator cap | 0.9bar |
|
| Thermostat opens | 82℃ |
|

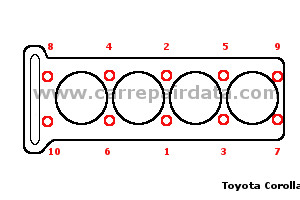

| Cylinder head tightening sequence | |
 |
|
| Cylinder head tightening torque 1 | 29Nm |
|
| Cylinder head tightening torque 2 | 90° |
|
| Cylinder head tightening torque 3 | 90° |
|
| Spark plug Tightening torque | 18Nm |
|
| Engine oil with filter | 3.9l |
|
| Cooling system | 5.5l |
|
| Gearbox oil |
4.5l |
|
| Automatic transmission fluid |
3.1l |
|
| Engine oil grade | API SJ SAE 5W-30 |
| ILSAC SAE 5W-30 |
|
| Gearbox oil grade | API GL-5 SAE 75W-90 |
|
| Automatic transmission fluid type | ATF DEXRON III |
|
| Brake fluid | SAE J1703 / FMVSS No. 116 DOT 3 |
|
 |
| Tire dimension (x/y R z) | 185/65 R14 |
|
| Front wheel presure | 2.2bar |
|
| Rear wheel presure | 2.3bar |
|
| Wheel bolt tightening torque (B) | 103Nm |
|
 |
| Minimal front brake disk thickness (R) | 20.0mm |
|
| Minimal rear brake disk thickness (R) | 8.0 / 9.0mm |
|
| Minimal front pad thickness without backing plate (P2) | 1.0mm |
|
| Minimal rear pad thickness without backing plate (P2) | 1.0mm |
|
| Rear drum diameter (D) | 200.0mm |
|
| Minimal rear shoe thickness (S) | 1.0mm |
|
