Service Repair Manual | |
| Year | 1991-1994 |
| Engine code | M60B30 |
| Engine size | 2997ccm |
| Power | 160kw |
| Idle speed | 525-675rpm |
| Compression | 12.0-14.0bar |
| Fuel system | Bosch Motronic M3.1 |
| Firing order | 1-5-4-8-6-3-7-2 |
| Spark plug | Bosch F7LDCR Denso K20TXR NGK BKR6EK |
| Electrode gap | 0.8-0.9mm |
| CO | 0.5% |
| CO2 | 14.5-16.0% |
| HC | 100ppm |
| O2 | 0.1-0.5% |
| CO content at increased idle speed | 0.3% |
| Increased idle speed for CO test | 2500-3000rpm |
| Lambda | 0.97-1.03 |
| Radiator cap | 1.9-2.1bar |
| Thermostat opens | 85℃ |
| Ventilator turn on | 91-99℃ |
| Battery | 85Ah |
| Alternator | 140A |

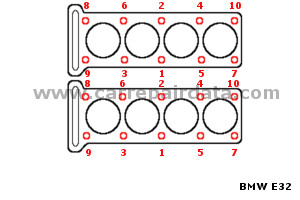

| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | 30Nm |
| Cylinder head tightening torque 2 | 80° |
| Cylinder head tightening torque 3 | 80° |
| Spark plug Tightening torque | 30Nm |
| Engine oil with filter | 7.5l |
| Cooling system | 12l |
| Gearbox oil | 1.2l |
| Automatic transmission fluid | Fluid = 3.3l / Dry refill = 7.8l |
| Differential | 1.4l |
| Engine oil grade | ACEA A2-96 SAE 10W-30 |
| ACEA A2-96 SAE 10W-40 | |
| ACEA A2-96 SAE 15W-40 | |
| Gearbox oil grade | Orange label = ATF Dexron II D Green label = Synthetic Mobil SCH630(BM) part No. 81-22-9-407-305 Yellow label = MTF-LT-1 / MTF-LT-2 No label = API GL-4 SAE 80 |
| Automatic transmission fluid type | Black label = ATF Dexron III Green label = ESSO LT 71141 |
| Brake fluid | DOT 4 |
 | |
| Tire dimension (x/y R z) | 205/65 R15 |
| 225/60 R15 | |
| 240/45 R15 | |
| Front wheel presure | 2.3bar |
| Rear wheel presure | 2.7bar |
| Wheel bolt tightening torque (B) | 90-110Nm |
| Front hub tightening torque (H) | 290Nm |
| Rear hub tightening torque (H) | 248Nm |
 | |
| Minimal front brake disk thickness (R) | 20.4 / 26.4mm |
| Minimal rear brake disk thickness (R) | 10.4 / 8.4mm |
| Minimal front pad thickness (P) | 3.0mm |
| Minimal rear pad thickness (P) | 3.0mm |
BMW 7 E32 730i (2997ccm) 1991-1994
Manufacturer | |
| BMW | |
Model | |
| 7 E32 | |
Type | |
| 730i | |
Year | |
| 1991-1994 | |
Engine code | |
| M60B30 | |
Engine size | |
| 2997ccm | |
Power | |
| 160kw | |
