Service Repair Manual | |
| Year | 2006- |
| Engine code | M15A |
| Engine size | 1490ccm |
| Power | 73kw |
| Idle speed | 650-750 / 700-800rpm |
| Compression | 14.0bar |
| Minimum compression | 11.0bar |
| Firing order | 1-3-4-2 |
| Spark plug | NGK BKR6E-11 NGK IFR6J11 Denso K20PR-U11 |
| Electrode gap | 1.0-1.1mm |
| Lambda | 0.97-1.03 |
| Radiator cap | 1.1bar |
| Thermostat opens | 80-84℃ |
| Battery | 36 / 44 / 60Ah |
| Alternator | 75A |
| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | 20Nm |
| Cylinder head tightening torque 2 | 40Nm |
| Cylinder head tightening torque 3 | 60° |
| Cylinder head tightening torque 4 | 60° |
| Spark plug Tightening torque | 25Nm |

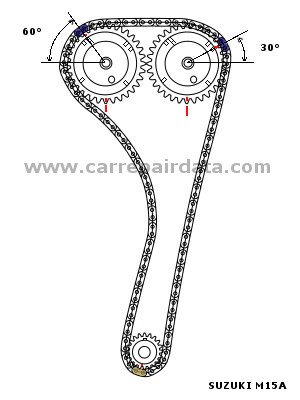

| Camshaft drive | |
 | |
| Engine oil with filter | 4.2l |
| Cooling system | 7.7l |
| Gearbox oil | 2.5l |
| Automatic transmission fluid | 2.6 / 5.8l |
| Engine oil grade | API SG / SH / SJ / SL / SM SAE 10W-40 |
| API SG / SH / SJ / SL / SM SAE 10W-50 | |
| API SG / SH / SJ / SL / SM SAE 15W-40 | |
| API SG / SH / SJ / SL / SM SAE 15W-50 | |
| API SG / SH / SJ / SL / SM SAE 20W-40 | |
| API SG / SH / SJ / SL / SM SAE 20W-50 | |
| Gearbox oil grade | API GL-4 SAE 75W-85 |
| API GL-4 SAE 75W-90 | |
| API GL-4 SAE 80W-90 | |
| Automatic transmission fluid type | Suzuki ATF 3317 |
| Mobil ATF 3309 | |
| Brake fluid | DOT 4 |
 | |
| Tire dimension (x/y R z) | 195/65 R15 |
| Wheel bolt tightening torque (B) | 85Nm |
| Front hub tightening torque (H) | 200Nm |
| Rear hub tightening torque (H) | 175Nm |
 | |
| Minimal front brake disk thickness (R) | 20.0mm |
| Minimal front pad thickness (P) | 2.0mm |
Suzuki SX4 1.5 16V (1490ccm) 2006-
Manufacturer | |
| Suzuki | |
Model | |
| SX4 | |
Type | |
| 1.5 16V | |
Year | |
| 2006- | |
Engine code | |
| M15A | |
Engine size | |
| 1490ccm | |
Power | |
| 73kw | |
