Service Repair Manual |
| Year | 1994-2002 |
|
| Engine code | G10B |
|
| Engine size | 993ccm |
|
| Power | 39kw |
|
| Idle speed | 850-950rpm |
|
| Fuel system | Suzuki MPI |
|
| Firing order | 1-3-4-2 |
|
| Spark plug | NGK BPR5EY
Bosch WR8DC+ |
|
| Electrode gap | 0.7-0.8mm |
|
| Lambda | 0.97-1.03 |
|
| Radiator cap | 0.9bar |
|
| Thermostat opens | 82℃ |
|
| Battery | 36Ah |
|
| Alternator | 50A |
|
| Cylinder head tightening torque 1 | 30-35Nm |
|
| Cylinder head tightening torque 2 | 50-55Nm |
|
| Cylinder head tightening torque 3 | 70-75Nm |
|
| Spark plug Tightening torque | 20-30Nm |
|

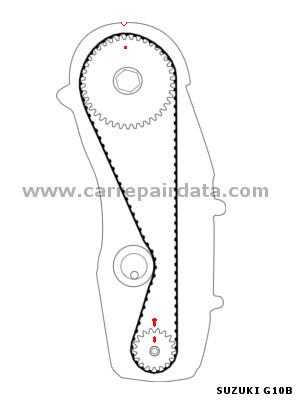

| Camshaft drive | |
 |
|
| Engine oil with filter | 3.6l |
|
| Cooling system | 4.0l |
|
| Gearbox oil |
2.4l |
|
| Engine oil grade | API SF / SG SAE 10W-40 |
| API SF / SG SAE 10W-50 |
|
| Gearbox oil grade | API GL-4 SAE 75W-90 |
|
| Brake fluid | DOT 3 |
|
| Timing belt | 100000km |
|
 |
| Tire dimension (x/y R z) | 145/70 R13 |
|
| Front wheel presure | 2.1bar |
|
| Rear wheel presure | 2.1bar |
|
| Wheel bolt tightening torque (B) | 70-100Nm |
|
| Front hub tightening torque (H) | 150-200Nm |
|
| Rear hub tightening torque (H) | 80-120Nm |
|
 |
| Minimal front brake disk thickness (R) | 15.0mm |
|
| Minimal front pad thickness (P) | 8.0mm |
|
