Service Repair Manual |
| Year | 1997-2002 |
|
| Engine code | 113.940 |
|
| Engine size | 4266ccm |
|
| Power | 205kw |
|
| Idle speed | 550-800rpm |
|
| Fuel system | Bosch Motronic ME 2.0 / 2.8 |
|
| Firing order | 1-5-4-2-6-3-7-8 |
|
| Spark plug | Bosch F 8 DPER |
|
| Electrode gap | 0.8mm |
|
| CO | 0.5% |
|
| CO2 | 14.5-16.0% |
|
| HC | 100ppm |
|
| O2 | 0.1-0.5% |
|
| CO content at increased idle speed | 0.3% |
|
| Increased idle speed for CO test | 2200-2800rpm |
|
| Lambda | 0.97-1.03 |
|
| Radiator cap | 1.4bar |
|
| Thermostat opens | 87℃ |
|
| Battery | 100Ah |
|
| Alternator | 150A |
|

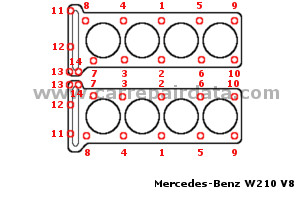

| Cylinder head tightening sequence | |
 |
|
| Cylinder head tightening torque 1 | bolts: 1-10 7.5Nm |
|
| Cylinder head tightening torque 2 | bolts: 1-10 22Nm |
|
| Cylinder head tightening torque 3 | bolts: 1-10 90° |
|
| Cylinder head tightening torque 4 | bolts: 1-10 90° |
|
| Cylinder head tightening torque 5 | bolts: 11-14 15Nm |
|
| Spark plug Tightening torque | 20-30Nm |
|
| Engine oil with filter | 8.0l |
|
| Cooling system | 11.2l |
|
| Automatic transmission fluid |
Dry refill = 9.4l |
|
| Differential | 1.3l |
|
| Engine oil grade | API SG SAE 5W-30 |
| API SG SAE 5W-40 |
| API SG SAE 5W-50 |
|
| Automatic transmission fluid type | ATF |
|
| Differential oil | API GL-5 SAE 90
API GL-5 SAE 85W-90 |
|
| Brake fluid | DOT 4 |
|
 |
| Tire dimension (x/y R z) | 215/55 R16 |
| 235/45 ZR17 |
|
| Front wheel presure | 2.2bar |
|
| Rear wheel presure | 2.4bar |
|
| Wheel bolt tightening torque (B) | 110Nm |
|
| Rear hub tightening torque (H) | 220Nm |
|
 |
| Minimal front brake disk thickness (R) | 25.4mm |
|
| Minimal rear brake disk thickness (R) | 8.3mm |
|
| Minimal front pad thickness without backing plate (P2) | 2.0mm |
|
| Minimal rear pad thickness without backing plate (P2) | 2.0mm |
|
