Service Repair Manual | |
| Year | 1997-2002 |
| Engine code | 112.941 |
| Engine size | 3199ccm |
| Power | 165kw |
| Idle speed | 600-850rpm |
| Compression | 11-13bar |
| Fuel system | Bosch Motronic ME 2.0 |
| Firing order | 1-4-3-6-2-5 |
| Spark plug | Bosch F 8 DPER Beru 14 FGH-8 DPURX2 |
| Electrode gap | 1.0mm |
| CO | 0.5% |
| CO2 | 14.5-16.0% |
| HC | 100ppm |
| O2 | 0.1-0.5% |
| CO content at increased idle speed | 0.3% |
| Increased idle speed for CO test | 2200-2800rpm |
| Lambda | 0.97-1.03 |
| Radiator cap | 1.4bar |
| Thermostat opens | 87℃ |
| Battery | 100Ah |
| Alternator | 90A |

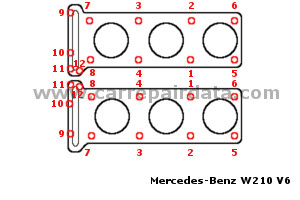

| Cylinder head tightening sequence | |
 | |
| Cylinder head tightening torque 1 | bolts: 1-8 7.5Nm |
| Cylinder head tightening torque 2 | bolts: 1-8 22Nm |
| Cylinder head tightening torque 3 | bolts: 1-8 90° |
| Cylinder head tightening torque 4 | bolts: 1-8 90° |
| Cylinder head tightening torque 5 | bolts: 9-12 15Nm |
| Spark plug Tightening torque | 20-30Nm |
| Engine oil with filter | 8.0l |
| Cooling system | 10.0l |
| Automatic transmission fluid | Dry refill = 8.0l |
| Differential | 1.3l |
| Engine oil grade | API SG SAE 5W-30 |
| API SG SAE 5W-40 | |
| API SG SAE 5W-50 | |
| Automatic transmission fluid type | ATF |
| Differential oil | API GL-5 SAE 90 API GL-5 SAE 85W-90 |
| Brake fluid | DOT 4 |
 | |
| Tire dimension (x/y R z) | 215/55 R16 |
| Front wheel presure | 2.2bar |
| Rear wheel presure | 2.6bar |
| Wheel bolt tightening torque (B) | 110Nm |
| Rear hub tightening torque (H) | 220Nm |
 | |
| Minimal front brake disk thickness (R) | 25.4mm |
| Minimal rear brake disk thickness (R) | 10.3mm |
| Minimal front pad thickness without backing plate (P2) | 2.0mm |
| Minimal rear pad thickness without backing plate (P2) | 2.0mm |
Mercedes-Benz E-Class W210 E 320 T S210 210.265 (3199ccm) 1997-2002
Manufacturer | |
| Mercedes-Benz | |
Model | |
| E-Class W210 | |
Type | |
| E 320 T S210 210.265 | |
Year | |
| 1997-2002 | |
Engine code | |
| 112.941 | |
Engine size | |
| 3199ccm | |
Power | |
| 165kw | |
