Service Repair Manual |
| Year | 2004-2010 |
|
| Engine code | G8DA/G8DB/G8DD/G8DE/G8DF |
|
| Engine size | 1560ccm |
|
| Power | 80kw |
|
| Idle speed | 700-800rpm |
|
| Radiator cap | 1.35-1.55bar |
|
| Battery | 80Ah |
|

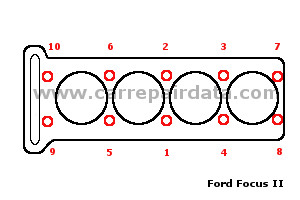

| Cylinder head tightening sequence | |
 |
|
| Cylinder head tightening torque 1 | 20Nm |
|
| Cylinder head tightening torque 2 | 40Nm |
|
| Cylinder head tightening torque 3 | 260° |
|
| Engine oil with filter | 3.8l |
|
| Cooling system | 7.3l |
|
| Gearbox oil |
|
 Oil = 1.9l |
|
| Engine oil grade | WSS-M2C913-A SAE 5W-30 |
| ACEA A5 / B5 SAE 5W-30 |
| ACEA A5 / B5 SAE 5W-40 |
| ACEA A5 / B5 SAE 10W-40 |
| ACEA A3 / B3 SAE 5W-30 |
| ACEA A3 / B3 SAE 10W-40 |
|
| Gearbox oil grade | WSD-M2C 200-C |
|
| Brake fluid | Super DOT 4 |
|
| Timing belt | 240000km |
|
 |
| Tire dimension (x/y R z) | 195/65 R15 |
| 205/55 R16 |
| 205/50 R17 |
|
| Front wheel presure | 2.1 / 2.1 / 2.3bar |
|
| Rear wheel presure | 2.3bar |
|
| Wheel bolt tightening torque (B) | 130Nm |
|
 |
| Minimal front brake disk thickness (R) | 23.0mm |
|
| Minimal rear brake disk thickness (R) | 9.0mm |
|
| Minimal front pad thickness without backing plate (P2) | 1.5mm |
|
| Minimal rear pad thickness without backing plate (P2) | 1.5mm |
|
