Suzuki Liana 1.6 (1586ccm) 2001-


Service Repair Manual

Year2001-
Engine codeM16A
Engine size1586ccm
Power76kw
Idle speed650-750 / 700-800rpm
Compression14.0bar
Minimum compression11.0bar
Firing order1-3-4-2
Spark plugNGK IFR6E11
NGK BKR6E-11
Denso K20PR-U11
Electrode gap1.0-1.1mm
Lambda0.97-1.03
Radiator cap1.1bar
Thermostat opens80-84℃
Battery28 / 38 / 54Ah
Alternator75A
Cylinder head tightening torque 120Nm
Cylinder head tightening torque 240Nm
Cylinder head tightening torque 360°
Cylinder head tightening torque 460°
Spark plug Tightening torque25Nm
Camshaft drive

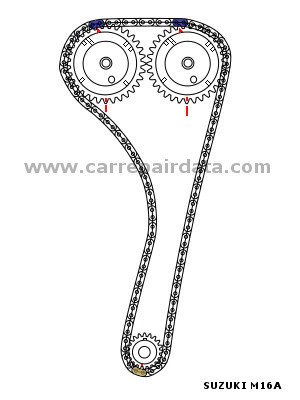

M16A Camshaft drive
Engine oil with filter4.1l
Cooling system6.9l
Gearbox oil 2.0l
Automatic transmission fluid 2.7 / 6.0l
Engine oil gradeAPI SE / SF / SG / SH / SJ SAE 10W-40
API SE / SF / SG / SH / SJ SAE 10W-50
API SE / SF / SG / SH / SJ SAE 15W-40
API SE / SF / SG / SH / SJ SAE 15W-50
API SE / SF / SG / SH / SJ SAE 20W-50
Gearbox oil gradeAPI GL-4 SAE 75W-90
API GL-4 SAE 75W-85
API GL-4 SAE 80W-90
Automatic transmission fluid typeATF Dexron III
ATF Dexron IIE
Brake fluidDOT 3
Wheel info eng
Tire dimension (x/y R z)185/65 R14
195/55 R15
Wheel bolt tightening torque (B)85Nm
Front hub tightening torque (H)175Nm
Rear hub tightening torque (H)175Nm
Brakes info
Minimal front brake disk thickness (R)18.0mm
Minimal front pad thickness (P)2.0mm


Manufacturer

Suzuki

Model

Liana

Type

1.6

Year

2001-

Engine code

M16A

Engine size

1586ccm

Power

76kw
