Ford Focus 1.4 16V ZETEC SE (1388ccm) 1998-2004


Service Repair Manual

Year1998-2004
Engine codeFXDA/FXDB/FXDC/FXDD
Engine size1388ccm
Power55kw
Idle speed670-730rpm
Fuel systemECC V
Firing order1-3-4-2
Spark plugMotorcraft AYFS22C
NGK PTR5A-13
Denso T16VR-U10
Electrode gap1.0 / 1.3mm
CO0.5%
CO214.5-16.0%
HC100ppm
O20.1-0.5%
CO content at increased idle speed0.3%
Increased idle speed for CO test2800-3100rpm
Lambda0.97-1.03
Radiator cap1.2bar
Thermostat opens82-96℃
Battery43-60Ah
Alternator80A

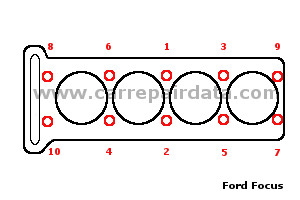

Cylinder head tightening sequence
Ford Focus 4 pistons Cylinder head tightening sequence
Cylinder head tightening torque 115Nm
Cylinder head tightening torque 230Nm
Cylinder head tightening torque 390°
Spark plug Tightening torque15Nm
Engine oil with filter3.75l
Cooling system5.0l
Gearbox oil
Ford ib5 transmission Oil = 2.3l
Engine oil gradeACEA A1 / B1 SAE 5W-30
WSS-M2C912-A1 SAE 5W-30
WSS-M2C913-A SAE 5W-30
ACEA A1 / B1 SAE 10W-30
ACEA A2 / B2 SAE 10W-30
API SH / CD / EC SAE 10W-30
Gearbox oil gradeFord WSD-M2C200-C
Brake fluidSuper DOT 4
Timing belt160000km
Wheel info eng
Tire dimension (x/y R z)185/65 R14
195/55 R15
205/50 R16
Front wheel presure2.0 / 2.2bar
Rear wheel presure2.0 / 2.2bar
Wheel bolt tightening torque (B)85Nm
Front hub tightening torque (H)316Nm
Rear hub tightening torque (H)235Nm
Brakes info
Minimal front brake disk thickness (R)20.0mm
Minimal front pad thickness without backing plate (P2)1.5mm
Rear drum diameter (D)203.0mm
Minimal rear shoe thickness (S)1.0mm


Manufacturer

Ford

Model

Focus

Type

1.4 16V ZETEC SE

Year

1998-2004

Engine code

FXDA/FXDB/FXDC/FXDD

Engine size

1388ccm

Power

55kw
