BMW E39 525tds (2498ccm) 1996-2000


Service Repair Manual

Year1996-2000
Engine codeM51D25
Engine size2498ccm
Power105kw
Idle speed650-750rpm
Compression20.0bar
Radiator cap1.4-1.6bar
Thermostat opens80℃
Battery88Ah
Alternator95A

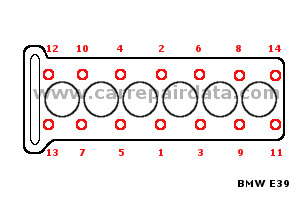

Cylinder head tightening sequence
BMW 6 pistons Cylinder head tightening sequence
Cylinder head tightening torque 180Nm
Cylinder head tightening torque 2slacken bolts: 180°
Cylinder head tightening torque 350Nm, 90°, 90°
Cylinder head tightening torque 4run engine for: 25min.
Cylinder head tightening torque 590°
Engine oil with filter6.75l
Cooling system10.0l
Gearbox oil 1.0l
Automatic transmission fluid Fluid = 3.0l / Dry refill = 8.9l
Differential1.0l
Engine oil gradeACEA B3-96 SAE 5W-30
ACEA B3-96 SAE 15W-40
Gearbox oil gradeOrange label = ATF Dexron II D
Green label = Synthetic Mobil SCH630(BM) part No. 81-22-9-407-305
Yellow label = MTF-LT-1 / MTF-LT-2
No label = API GL-4 SAE 80
Automatic transmission fluid typeATF Dexron III
Differential oilBMW SAF-XO
BMW SAF-XLS
Brake fluidDOT4
Wheel info eng
Tire dimension (x/y R z)205/65 R15
225/60 R15
Front wheel presure2.3bar
Rear wheel presure2.3bar
Wheel bolt tightening torque (B)90-110Nm
Front hub tightening torque (H)290Nm
Rear hub tightening torque (H)M22 = 200Nm
M24 = 250Nm
M27 = 300Nm
Brakes info
Minimal front brake disk thickness (R)20.4mm
Minimal rear brake disk thickness (R)8.4 / 18.4mm
Minimal front pad thickness (P)3.0mm
Minimal rear pad thickness (P)3.0mm


Manufacturer

BMW

Model

E39

Type

525tds

Year

1996-2000

Engine code

M51D25

Engine size

2498ccm

Power

105kw
